Submit eCheck Payments using the API

You can submit eCheck payments through the Payrix Pro API using POST /txns. You can enter new account information or process payments with an existing customer's tokenized account as the payment method.

Submit eCheck Payments with a New Payment Method

The following steps demonstrate how to submit an eCheck payment using a new payment method that hasn't been stored with Payrix Pro. This approach is useful when you don't plan to store payment information, such as for one-time eCheck payments, with Payrix Pro:

  1. Create a POST https://test-api.payrix.com/txns request and include a payload with the following fields:

    BASH
    POST /txns HTTP/1.1
    Accept: application/json
    Content-Type: application/json
    Host: test-api.payrix.com
    APIKEY: {apiKey}
    JSON
    {
      "merchant": "t1_mer_123abc4d567890efg1h2i34",
      "type": "7",
      "origin": "2",
      "payment": {
          "method": "8",
          "number": "123456789",
          "routing": "123456789"
      },
      "total": "10000",
      "first": "Joe",
      "last": "Smith"
    }

Parameter

Description

Notes and Required Values

merchant

ID of the Merchant to pay.

N/A

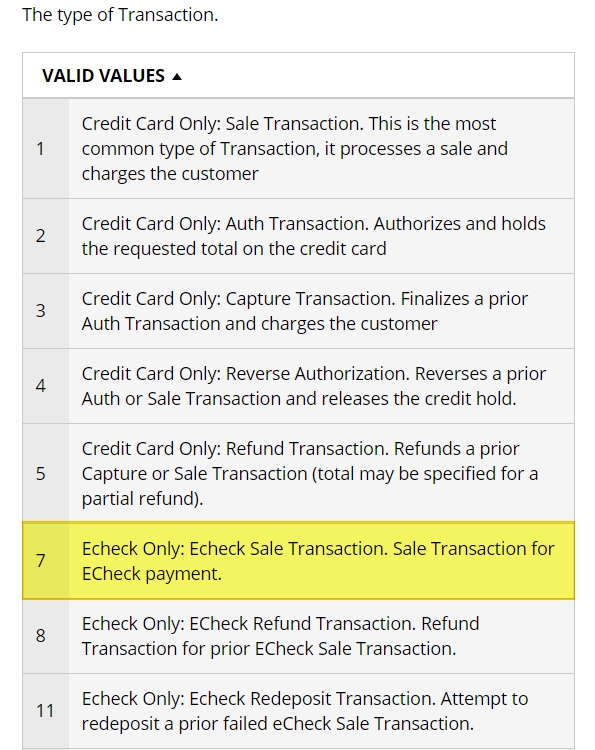

type

The type of Transaction.

Required Value:

  • 7: eCheck Sale

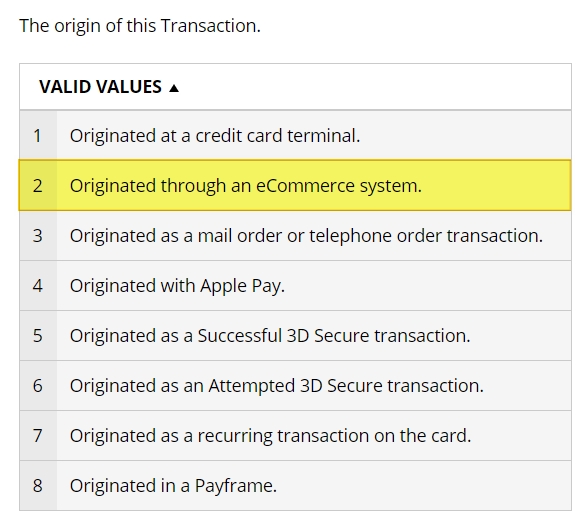

origin

The origin of this Transaction. How the merchant received the payment information.

Default Value:

  • 2: Processed through an e-commerce system.

payment

The object containing the payment method information.

Canadian Merchants who are submitting electronic funds transfer (EFT) transactions should provide a nine-digit routing number in the format 0+{institution_number}+{transit_number}.

method

The payment method associated with this Transaction, including the account details.

Valid Values:

  • 8: Personal checking account

  • 9: Personal savings account

  • 10: Corporate checking account

  • 11: Corporate savings account

number

The bank account number.

Sandbox Testing Value: 123456789

routing

The bank account routing number.

Sandbox Testing Value: 123456789

total

Total amount to charge, in cents.

Note: total is specified as an integer in cents and does not accept decimal and punctuation values.

Example: 10000 = $100.00

first

Payer's first name.

Note: Either first or last is required.

last

Payer's last name.

Note: Either first or last is required.

  1. Submit the request. A successful 200 OK response contains details about the payment transaction:

    JSON
    {
        "response": {
            "data": [
                {
                    "payment": {
                        "id": "g123a456bc78901.",
                        "method": 8,
                        "number": "6789",
                        "routing": "6789",
                        "bin": null,
                        "payment": null,
                        "lastChecked": null,
                        "last4": null,
                        "mask": null,
                        "plaidConsumerAccount": null
                    },
                    "id": "t1_txn_66f...",
                    "created": "2024-09-23 16:09:37.6355",
                    "modified": "2024-09-23 16:09:39.4647",
                    "creator": "t1_log_654...",
                    ...
                }
            ],
            "details": {
                "requestId": 1
            },
            "errors": []
        }
    }
  2. (Optional) Store the id value, which is the ID of the transaction. You can use it to check the transaction’s status at a later time using GET /txns/{id}.

Result: The eCheck payment is successfully submitted to the Payrix Pro platform using a customer’s new checking account as the payment method.

Tip

Because the status updates within a few hours, consider setting up a job that checks for regular updates.

Submit eCheck Payments with a Payment Token

You can also submit an eCheck payment using an existing tokenized payment method. The payment token must be an eCheck account, otherwise, the request to submit the eCheck payment will fail.

The following steps demonstrate how to use an existing customer’s payment token to submit an eCheck payment.

Verify the Token Payment Method

eCheck payment tokens are created using POST /tokens with payment.method set to a valid eCheck value, such as 8 for a personal checking account.

To verify a payment token as suitable for eCheck:

  1. Create a GET /tokens?expand[payment][] request.

    • Include the SEARCH header value of token[equals]={tokenId} to return the specific token.

      BASH
      GET /tokens?expand[payment][] HTTP/1.1
      Accept: application/json
      Content-Type: application/json
      Host: test-api.payrix.com
      APIKEY: {apiKey}
      SEARCH: token[equals]={token}
  2. Submit the request. A successful 200 OK response looks similar to the following example.
    Note: If the response.data.payment.method field is 8, 9, 10, or 11, then the token can be used for eCheck payments:

    JSON
    {
        "response": {
            "data": [
                {
                    "payment": {
                        "id": "g123a456bc78901",
                        "method": 8,
                        "number": "1111",
                        "routing": "1111",
                        "payment": null,
                        "lastChecked": null,
                        "last4": null,
                        "mask": null,
                        "plaidConsumerAccount": null
                    }
                }
            ]
        }
    }
  3. Create a POST /txns request and include a payload with the following fields:

    BASH
    POST /txns HTTP/1.1
    Accept: application/json
    Content-Type: application/json
    Host: test-api.payrix.com
    APIKEY: {apiKey}
    JSON

    {
      "merchant": "t1_mer_123abc4d567890efg1h2i34",
      "type": "7",
      "origin": "2",
      "token":"a12bc3d4e56f789g0h1ij23kl456789",
      "total": "10000"
    }

  4. Submit the request. A successful 200 OK response contains details about the payment transaction:

    JSON
    {
        "response": {
            "data": [
                {
                    "id": "t1_txn_123abc4d567890efg1h2i34",
                    "created": "2024-09-23 17:49:45.6275",
                    "merchant": "t1_mer_123abc4d567890efg1h2i34",
                    "token": "a12bc3d4e56f789g0h1ij23kl456789",
                    "payment": "g123a456bc78901",
                }
            ],
            "details": {
                "requestId": 1
            },
            "errors": []
        }
    }

Parameter

Description

Notes and Valid Values

merchant

ID of the Merchant to pay.

type

The type of Transaction.

Required Value:

  • 7: eCheck Sale

origin

The origin of this Transaction. How the merchant received the payment information.

Default Value:

  • 2: Processed through an e-commerce system.

token

The ID from the existing customer’s payment token.

N/A

total

Total amount to charge, in cents.

Note: total is specified as an integer in cents and does not accept decimal and punctuation values.

Example: 10000 = $100.00

Result: The eCheck payment is successfully submitted to the Payrix Pro platform using a customer’s existing payment token as the payment method.

Submit and Tokenize eCheck Payments with a New Payment Method

You can also submit a first-time customer’s eCheck payment and tokenize their account information to streamline future payments. The following steps outline how to submit an eCheck payment using a new payment method that hasn't been stored with Payrix Pro, and you’d like to store the payment information for future use:

  1. Create a POST https://test-api.payrix.com/txns request and include a payload with the following fields:

    BASH
    POST /txns HTTP/1.1
    Accept: application/json
    Content-Type: application/json
    Host: test-api.payrix.com
    APIKEY: {apiKey}
    JSON
    {
      "merchant": "t1_mer_123abc4d567890efg1h2i34",
      "type": "7",
      "origin": "2",
      "token": {
          "payment":{
              "method": "8",
              "number": "123456789",
              "routing": "123456789"
          },
          "customer":{
              "first": "Joe",
              "last": "Smith"
          }
      },
      "total": "10000"
    }

Parameter

Description

Notes and Required Values

merchant

ID of the Merchant to pay.

N/A

type

The type of Transaction.

Required Value:

  • 7: eCheck Sale

origin

The origin of this Transaction. How the merchant received the payment information.

Default Value:

  • 2: Processed through an e-commerce system.

token

The object where the token data is configured.

N/A

payment

The object containing the payment method information.

Canadian Merchants who are submitting electronic funds transfer (EFT) transactions should provide a nine-digit routing number in the format 0+{institution_number}+{transit_number}.

method

The payment method associated with this Transaction, including the account details.

Valid Values:

  • 8: Personal checking account

  • 9: Personal savings account

  • 10: Corporate checking account

  • 11: Corporate savings account

number

The bank account number.

Sandbox Testing Value: 123456789

routing

The bank account routing number.

Sandbox Testing Value: 123456789

customer

The object containing the customer name associated with the payment account.

N/A

first

Payer's first name.

N/A

last

Payer's last name.

N/A

total

Total amount to charge, in cents.

Note: total is specified as an integer in cents and does not accept decimal and punctuation values.

Example: 10000 = $100.00

JSON
{
    "response": {
        "data": [
            {
                "token": {
                    "customer": {
                        "id": "t1_cus_123abc4d567890efg1h2i34",
                        "created": "2024-09-23 17:35:18.0347",
                        ...
                    },
                    "payment": {
                        "id": "g123a456bc78901",
                        "method": 8,
                        "number": "6789",
                        "routing": "6789",
                        ...
                    },
                    "id": "t1_tok_123abc4d567890efg1h2i34",   //  New Token ID
                    "created": "2024-09-23 17:35:18.0428",
                    "creator": "t1_log_123abc4d567890efg1h2i34",
                    "modifier": "t1_log_123abc4d567890efg1h2i34",
                    "token": "a12bc3d4e56f789g0h1ij23kl456789",   // New Token value
                    ...
                },
                "id": "t1_txn_123abc4d567890efg1h2i34",  // New Transaction ID
                "created": "2024-09-23 17:35:18.0465",
                "modified": "2024-09-23 17:35:19.8753",
                ...
            }
        ],
        "details": {
            "requestId": 1
        },
        "errors": []
    }
}

Result: The eCheck payment is successfully submitted to the Payrix Pro platform using a customer’s new checking account as the payment method. This payment method is also successfully tokenized and associated with the customer for future eCheck payments.
