triPOS - Supported Terminals
Each triPOS integration type supports different sets of payment terminals.
These terminals must be ordered by a Payrix Partner directly from any of the following approved KIFs (Key Injection Facilities):
POS Portal (A ScanSource Company)
Ingram Micro (formerly TPG)
Below is a list of triPOS-compatible terminals and their minimum triPOS software versions required for enablement. Each Terminal provides a different level of supported features. Click on any listed terminal to view a Supported Feature matrix for each.
All listed terminals that support triPOS Direct also support triPOS Cloud integration by default.
Compatible Devices | Supported triPOS platforms | Minimum Required triPOS Software Versions |
|---|---|---|
triPOS Mobile | Android 1.5.0 or higher, iOS 2.0.0 or higher | |
triPOS Mobile | Android 1.5.0 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Mobile | Android 1.5.0 or higher | |
triPOS Mobile | Android 1.5.0 or higher, iOS 2.0.0 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Mobile | Android 1.5.0 or higher, iOS 2.0.0 or higher | |
triPOS Mobile | iOS 2.0.0 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Mobile | Android 1.5.0 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Direct | v5.21 or higher |
Compatible Legacy Devices
The following terminals are no longer being manufactured and have reached end-of-life. As a result, we do not recommend beginning a new integration with these terminals but do offer limited support for existing partners with the terminal hardware implemented in their current solution.
Compatible Devices | Supported triPOS platforms | Minimum Required triPOS Versions |
|---|---|---|
triPOS Mobile | Android 1.5.0, iOS 2.0.0 or higher | |
triPOS Direct | 5.21 or higher | |
triPOS Mobile | Android 1.5.0, iOS 2.0.0 or higher | |
triPOS Direct | 5.21 or higher | |
triPOS Direct | 5.21 or higher | |
triPOS Direct | 5.21 or higher | |
Ingenico iSMP4 (V1) | triPOS Direct | 5.21 or higher |
Ingenico iSMP4 (V2) | triPOS Direct | 6.1.0 or higher |
triPOS Mobile | Android 1.5.0, iOS 2.0.0 or higher | |
triPOS Direct | v5.21 or higher | |
triPOS Direct | v5.21 or higher |

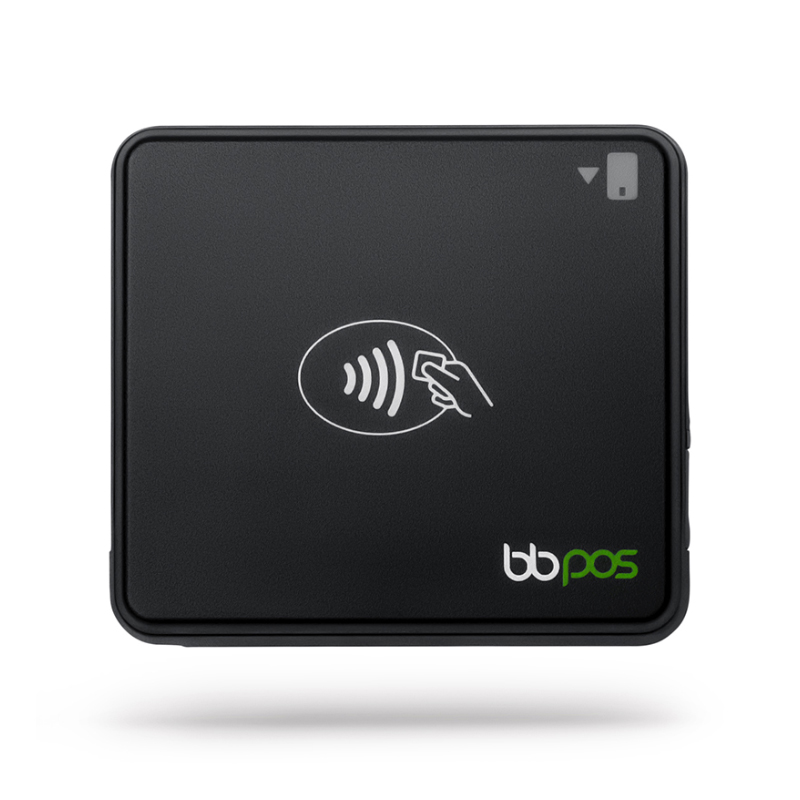

BBPOS Chipper 2X BT
The BBPOS Chipper 2X BT is a compact and versatile payment terminal offering reliable and secure mobile POS for various transaction environments.
Warning: This legacy device is still supported, however, new and existing Merchants should consider newer terminal options and recertification with the Developer Integrations team.
BBPOS Chipper 2X BT Terminal Hardware
BBPOS Chipper 3X BT
The BBPOS Chipper 3X BT is a versatile payment terminal known for its Bluetooth connectivity, providing a secure and convenient solution for various mobile POS environments.
BBPOS Chipper 3X BT Terminal Hardware

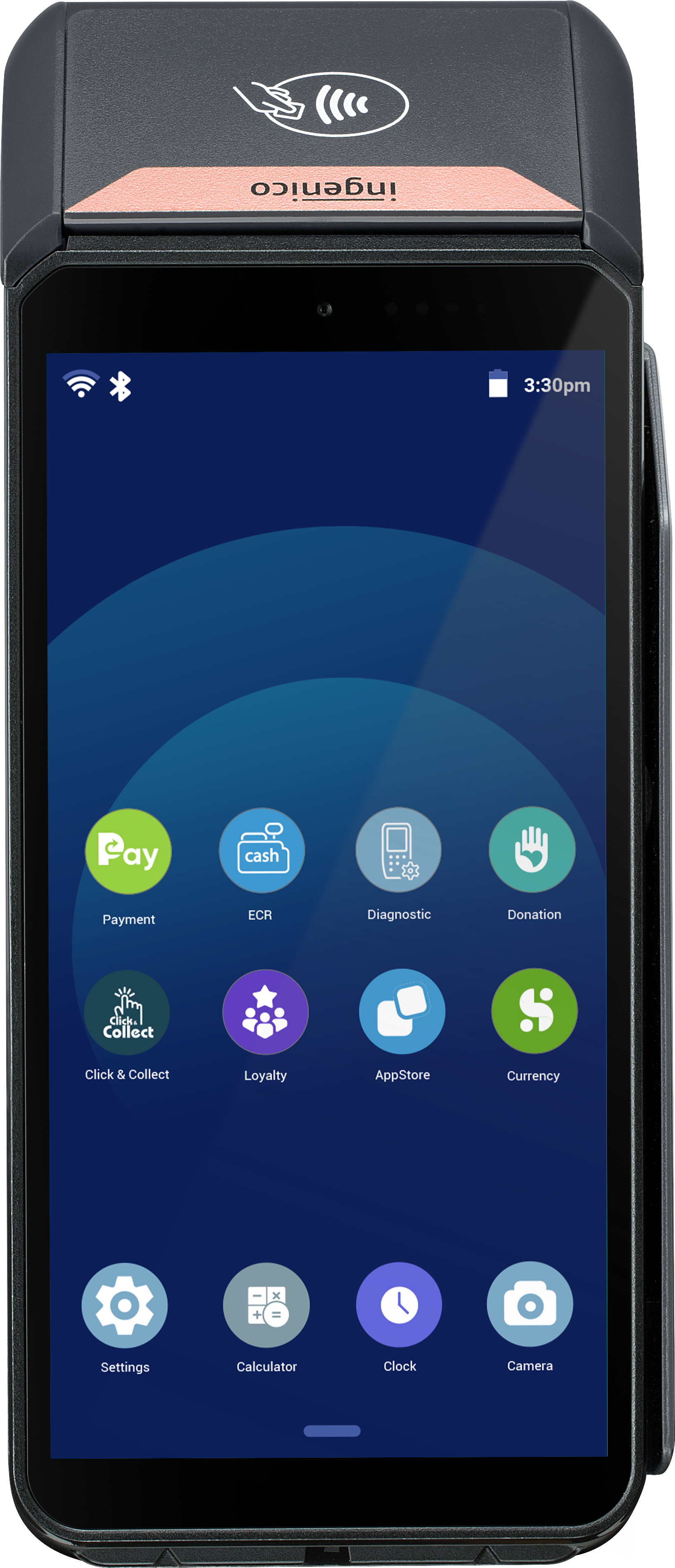

Ingenico AXIUM DX8000
The Ingenico AXIUM DX8000 stands out as a reliable payment terminal, offering advanced features suitable for diverse business needs, ensuring efficient and secure transactions.
Ingenico AXIUM DX8000 Terminal Hardware
Ingenico IPP320
The Ingnico IPP320 is a compact countertop payment terminal known for its reliability, ease of use, and secure transaction experience for Merchants.
Warning: This legacy device is still supported, however, new and existing Merchants should consider newer terminal options and recertification with the Developer Integrations team.
Ingenico IPP320 Terminal Hardware

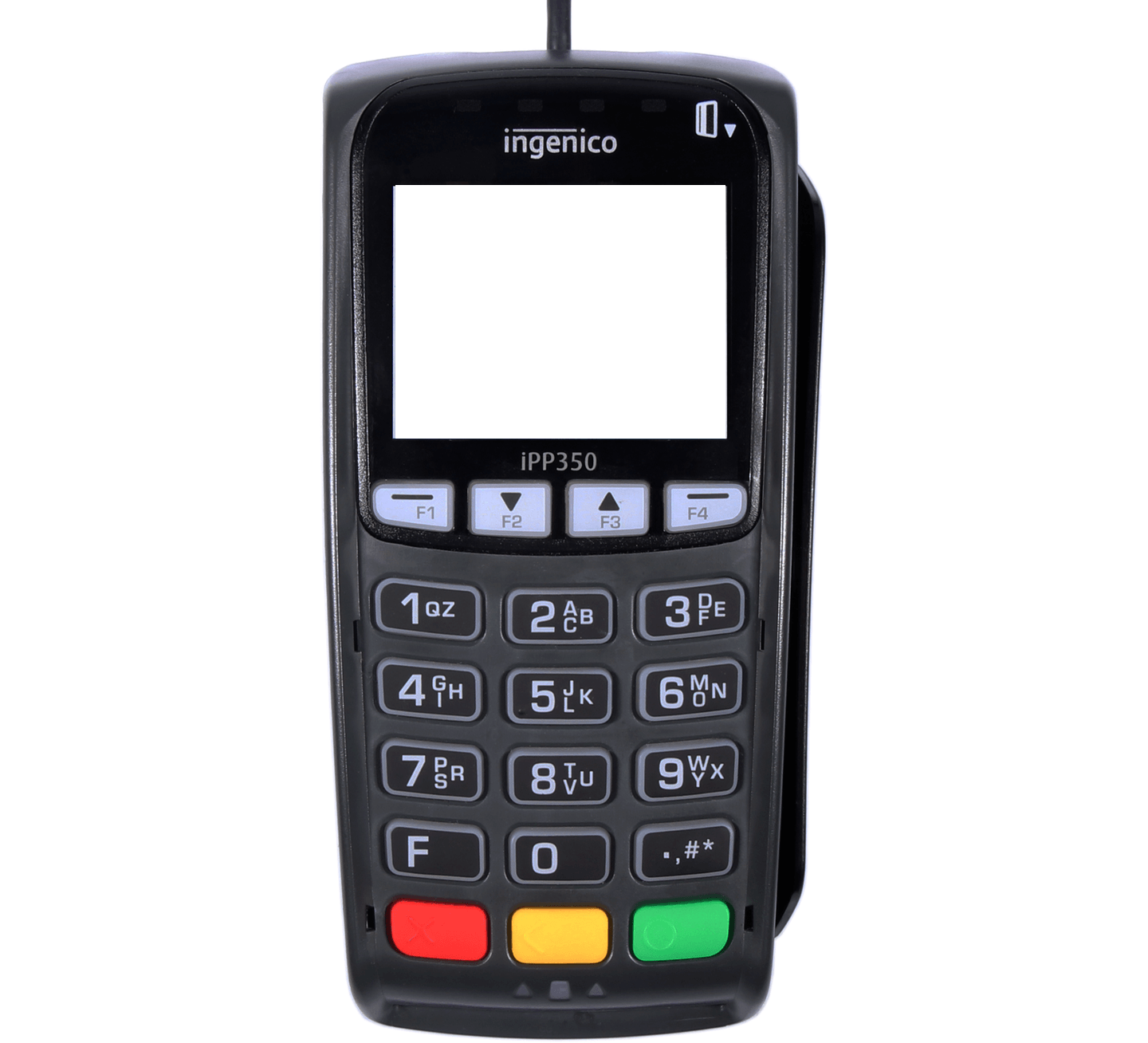

Ingenico IPP350
The Ingenico IPP350 is a feature-rich payment terminal designed for high-volume environments, ensuring fast and secure transactions for businesses.
Warning: This legacy device is still supported, however, new and existing Merchants should consider newer terminal options and recertification with the Developer Integrations team.
Ingenico IPP350 Terminal Hardware

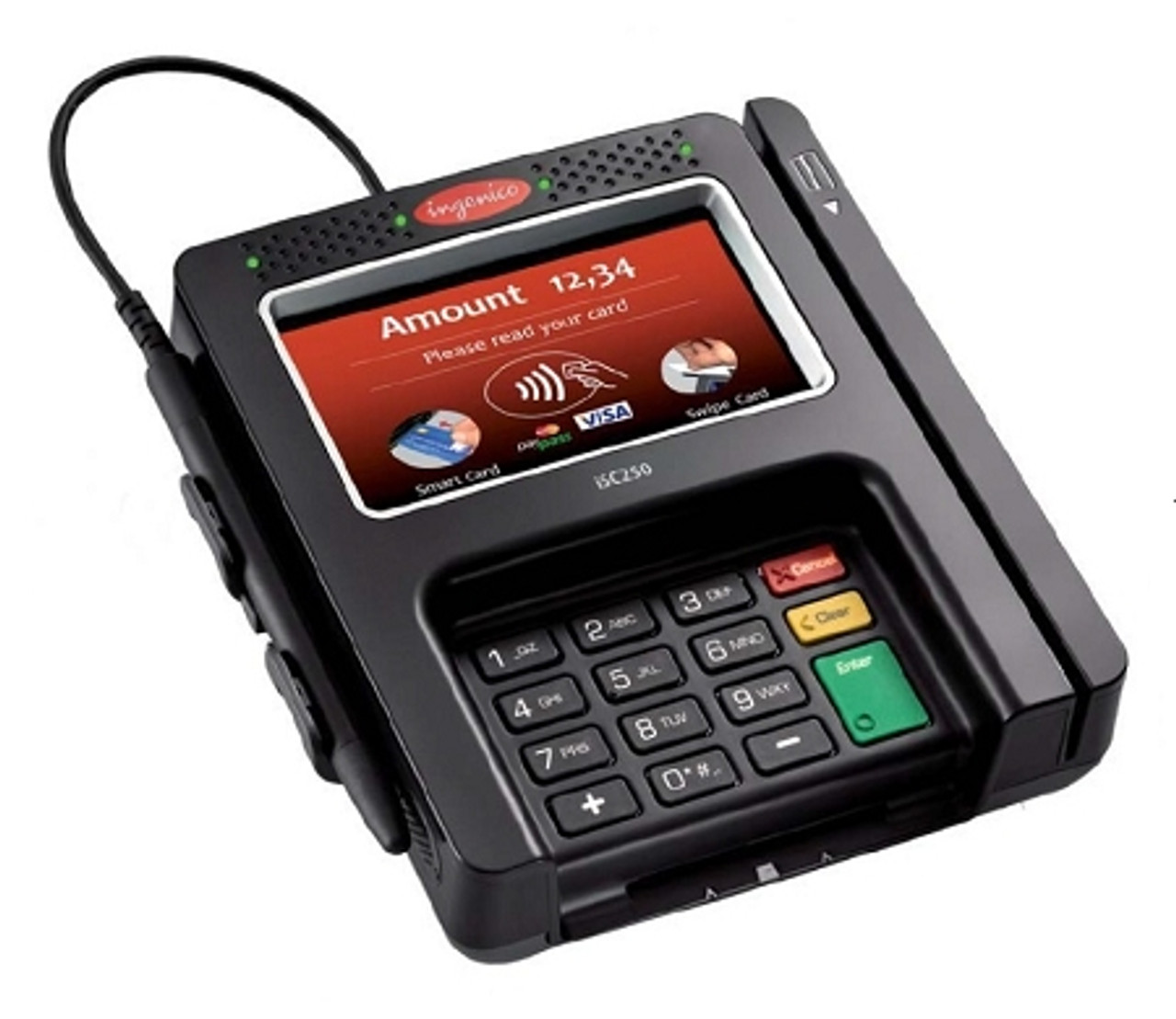

Ingenico iSC250
The Ingenico iSC250 is an innovative payment terminal with a vibrant touchscreen, delivering a user-friendly and secure payment experience for merchants and customers.
Warning: This legacy device is still supported, however, new and existing Merchants should consider newer terminal options and recertification with the Developer Integrations team.
Ingenico iSC250 Terminal Hardware

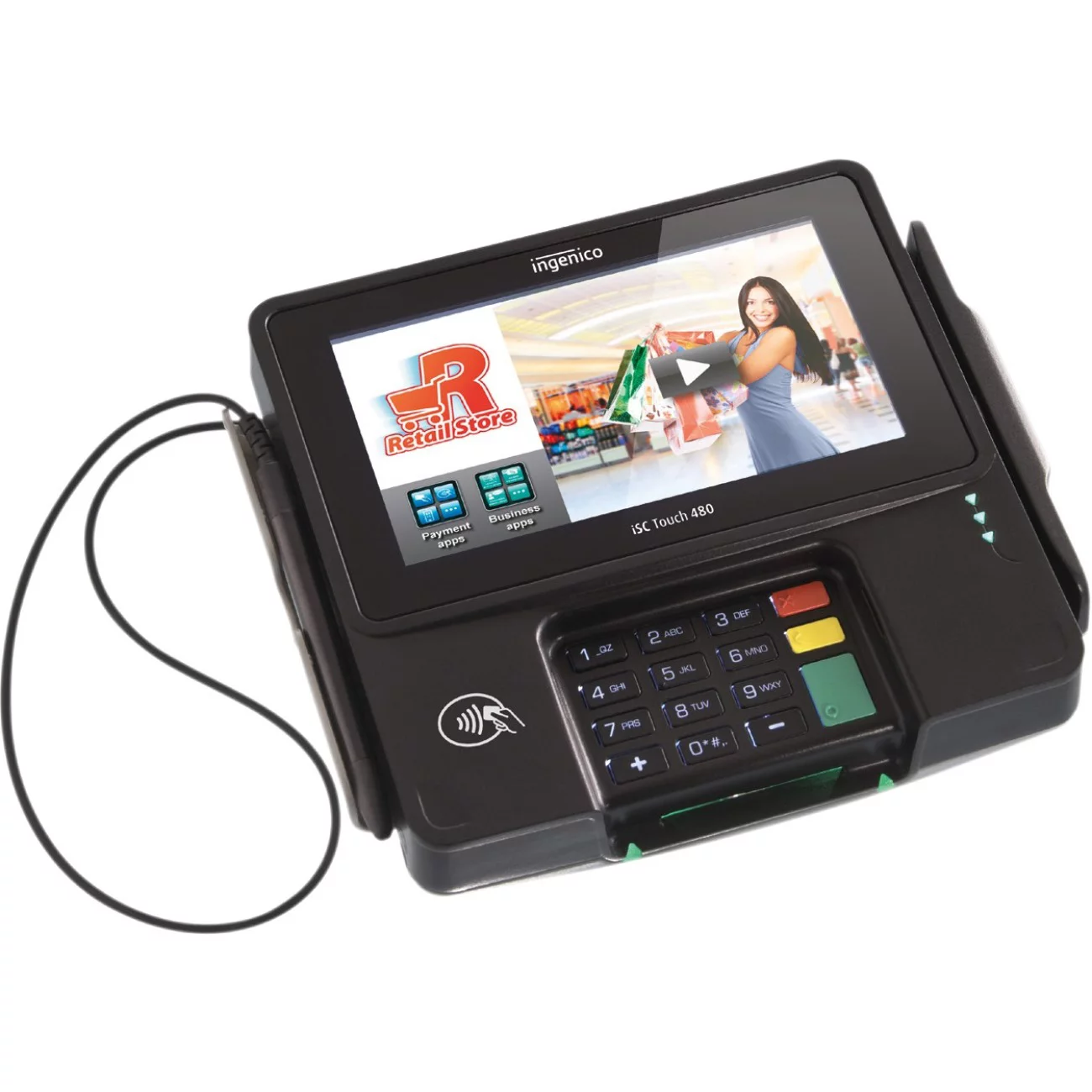

Ingenico iSC Touch 480
The Ingenico iSC Touch 480 is a powerful payment terminal designed for high-performance requirements ensuring secure and efficient transactions in demanding environments.
Warning: This legacy device is still supported, however, new and existing Merchants should consider newer terminal options and recertification with the Developer Integrations team.
Ingenico iSC Touch 480 Terminal Hardware

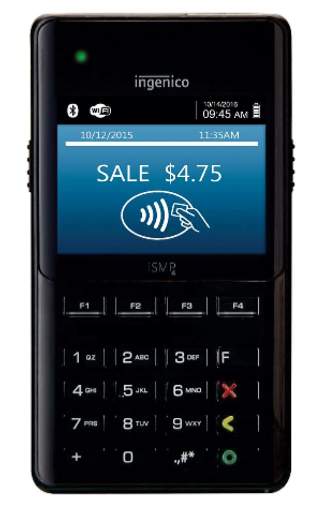

Ingenico iSMP4 (V1 & V2)
The iSMP4 is part of Ingenico's Mobile smart payments. It is a lightweight mobile unit with an option to have a barcode scanner.
Ingenico iSMP4 Terminal Hardware
Feature | Feature Support |
|---|---|
P2P Encryption | Yes |
Signature Capture | No |
Portable | Yes |
Receipt Printer | No |
Touch Screen | No |
PIN Capable | Yes |
NFC Capable | Yes |
Line Item Scrolling | No |
Idle Message | No |
EMV Debit | No |
MSD Contactless | Yes |
EMV Contactless | No |
Barcode Scanner | Yes |
Display Dimensions | 3.5" |
Supported Communication Types |
|
Notice for Ingenico iSMP4 V2 Notice – TriPOS Direct, TriPOS Mobile, and TriPOS Cloud
To use the iSMP4 V2, which requires a higher software version than the V1, anyone ordering or utilizing a new iSMP4 device must be on the following versions of TriPOS:
TriPOS Direct 6.1.0 or higher
TriPOS Mobile Android
TriPOS Mobile iOS 2.0.0 or higher
TriPOS Cloud
Comparable Devices
Merchants can continue to upgrade the iSMP4 terminal hardware and local triPOS software, however, it is recommended to upgrade to a newer comparable device such as the Link 2500 or the Move 5000 with added support not found in the Ingenico iSMP4 V1 or V2 hardware
Ingenico retired the iSMP4 V1 after releasing a V2 version to adhere to the new industry standards for battery-powered devices. iSMP4 V1 units are currently in inventory until depleted. Then, all following orders will ship with the V2 version.
Merchants who want to continue using the iSMP4 terminal with the V2 hardware inventory must upgrade to the appropriate version of TriPOS (listed below).
Note: Recertification for the V2 hardware is not required unless the triPOS software version is out-of-date or not supported. In this case, an update for the triPOS software version will be required followed by recertification. It is recommended to update your triPOS software version before enabling V2 hardware.
Merchants requiring recertification to integrate or certify a new device, they must contact their Relationship Manager to begin the process.

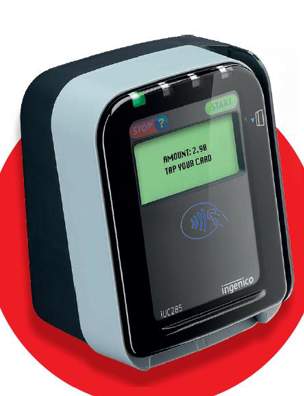

Ingenico iUC285
The iUC285 is part of Ingenico's iSelf Series. It is designed to be built into a Kiosk as an unattended solution.
Ingenico iUC285 Terminal Hardware

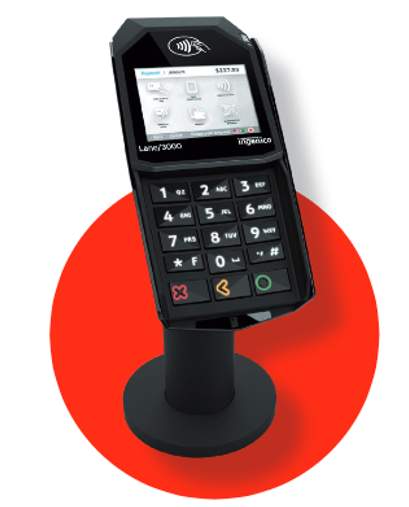

Ingenico Lane 3000
The Lane 3000 is part of Ingenico's Tetra device line. It's a mid-sized PIN pad good for countertop sales.
Ingenico Lane 3000 Terminal Hardware

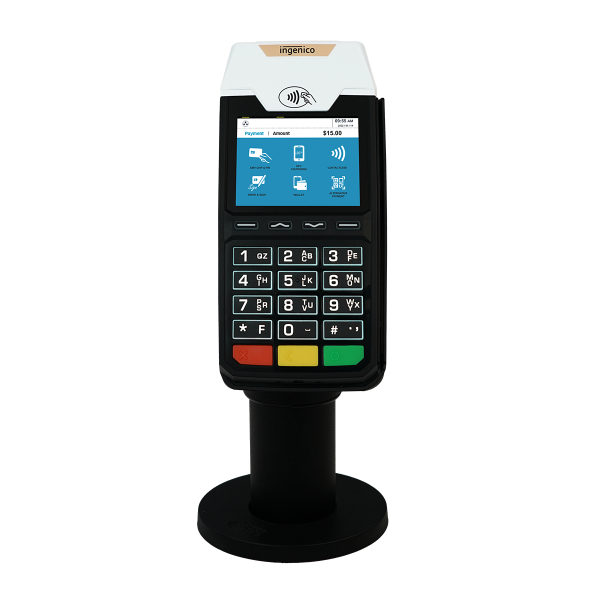

Ingenico Lane 3600
The Lane 3600 is part of Ingenico's Tetra device line. Ideal for retail and hospitality businesses.
Ingenico Lane 3600 Terminal Hardware.

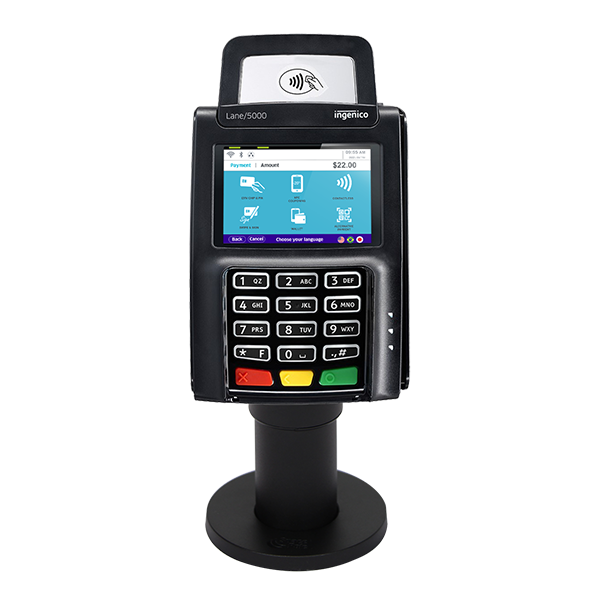

Ingenico Lane 5000
The Lane 5000 is part of Ingenico's Tetra device line. It has a large touch screen with signature capture.
Ingenico Lane 5000 Terminal Hardware

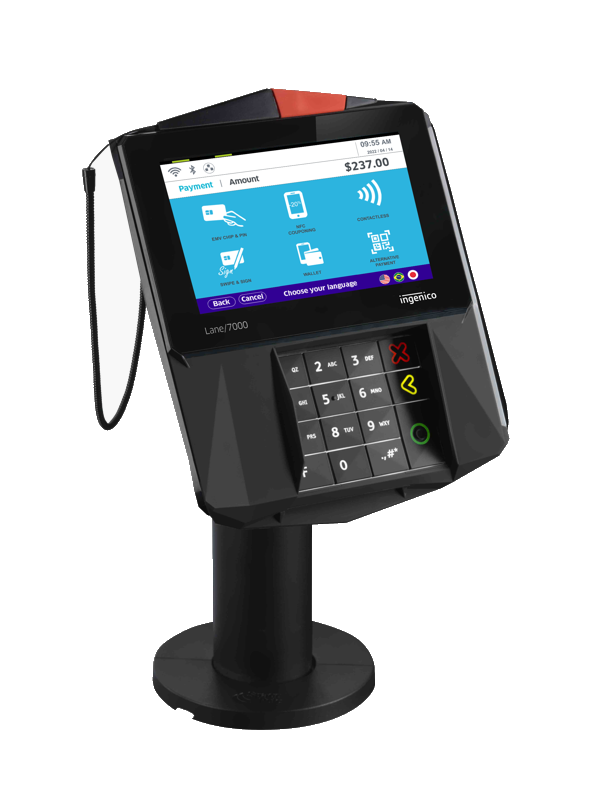

Ingenico Lane 7000
The Lane 7000 is part of Ingenico's Tetra device line. It has a large Multimedia touchscreen.
Ingenico Lane 7000 Terminal Hardware

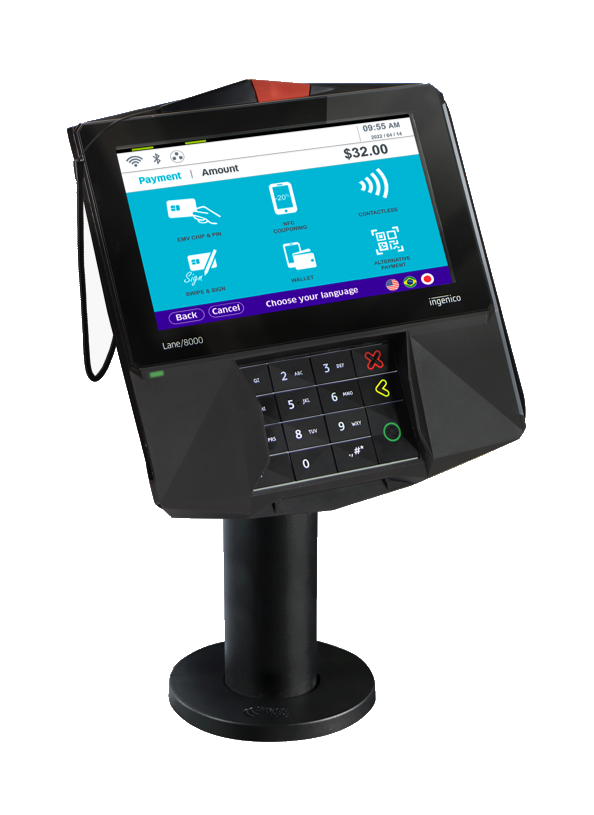

Ingenico Lane 8000
The Lane 8000 is part of Ingenico's Tetra device line. It has a large Multimedia touchscreen.
Ingenico Lane 8000 Terminal Hardware

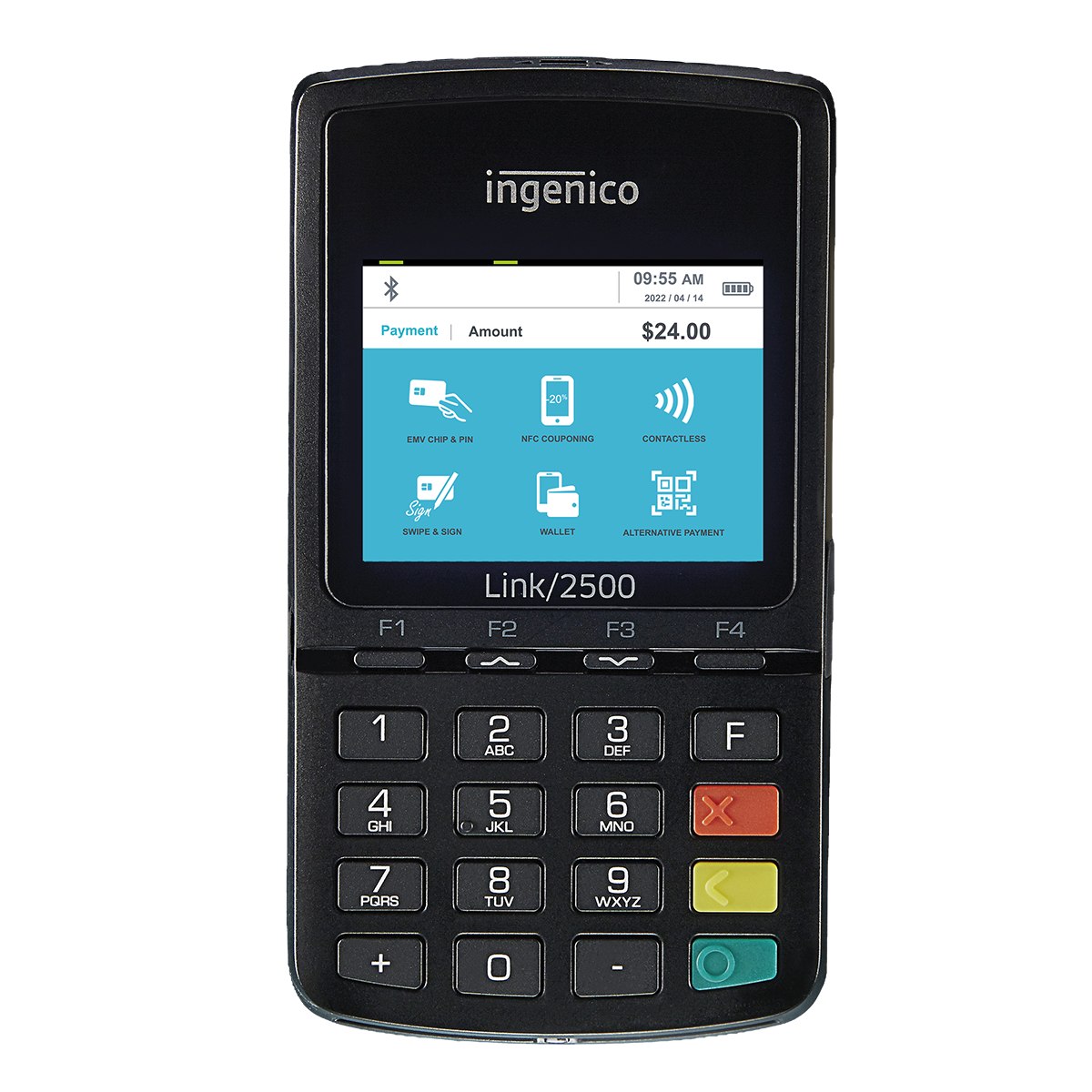

Ingenico Link 2500
The Link 2500 is part of Ingenico's Mobile smart payments. It is a lightweight, pocket-sized Mobile device.
Ingenico Link 2500 Terminal Hardware

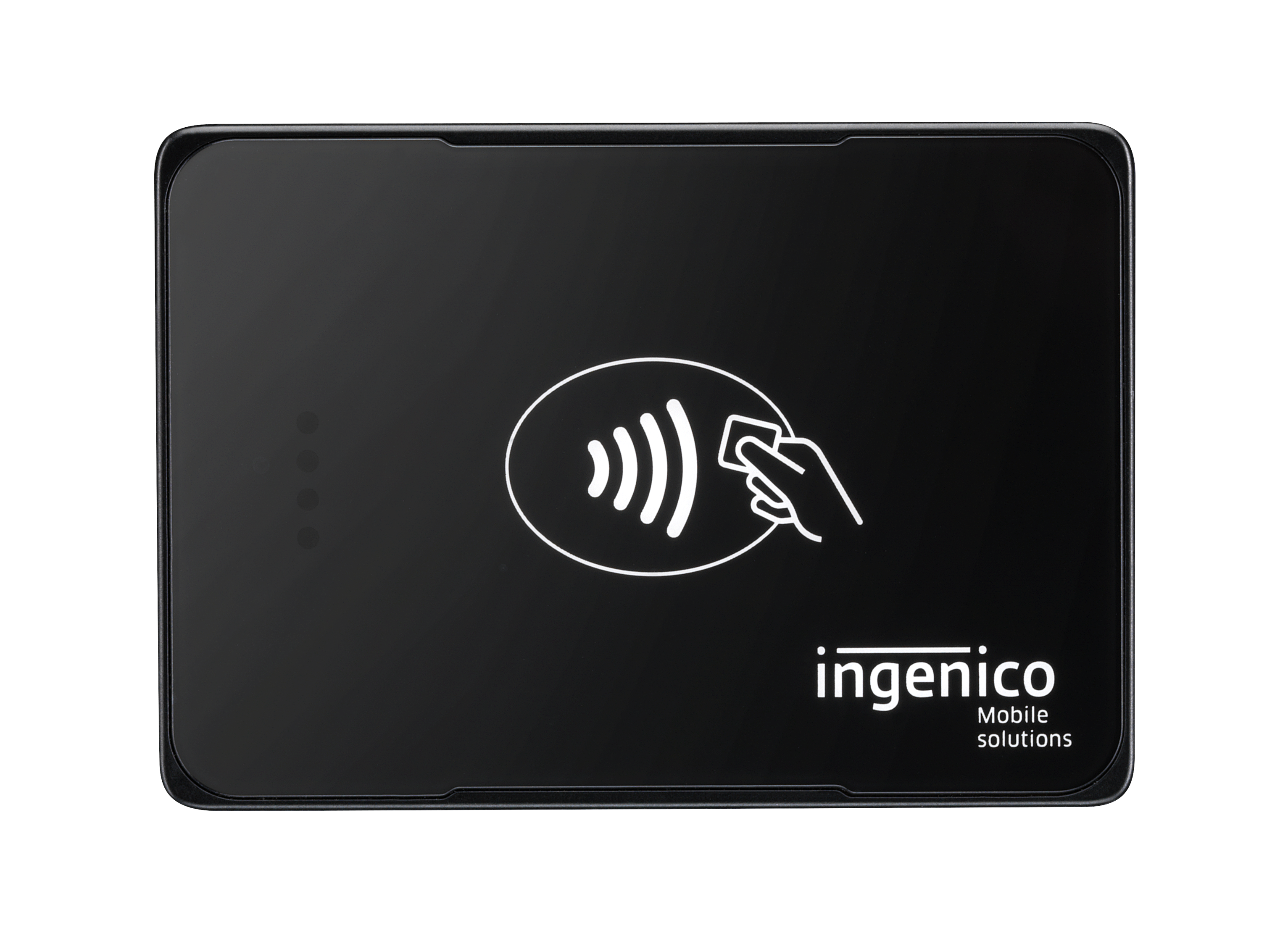

Ingenico Moby 5500
Ingenico Moby 5500 Terminal Hardware

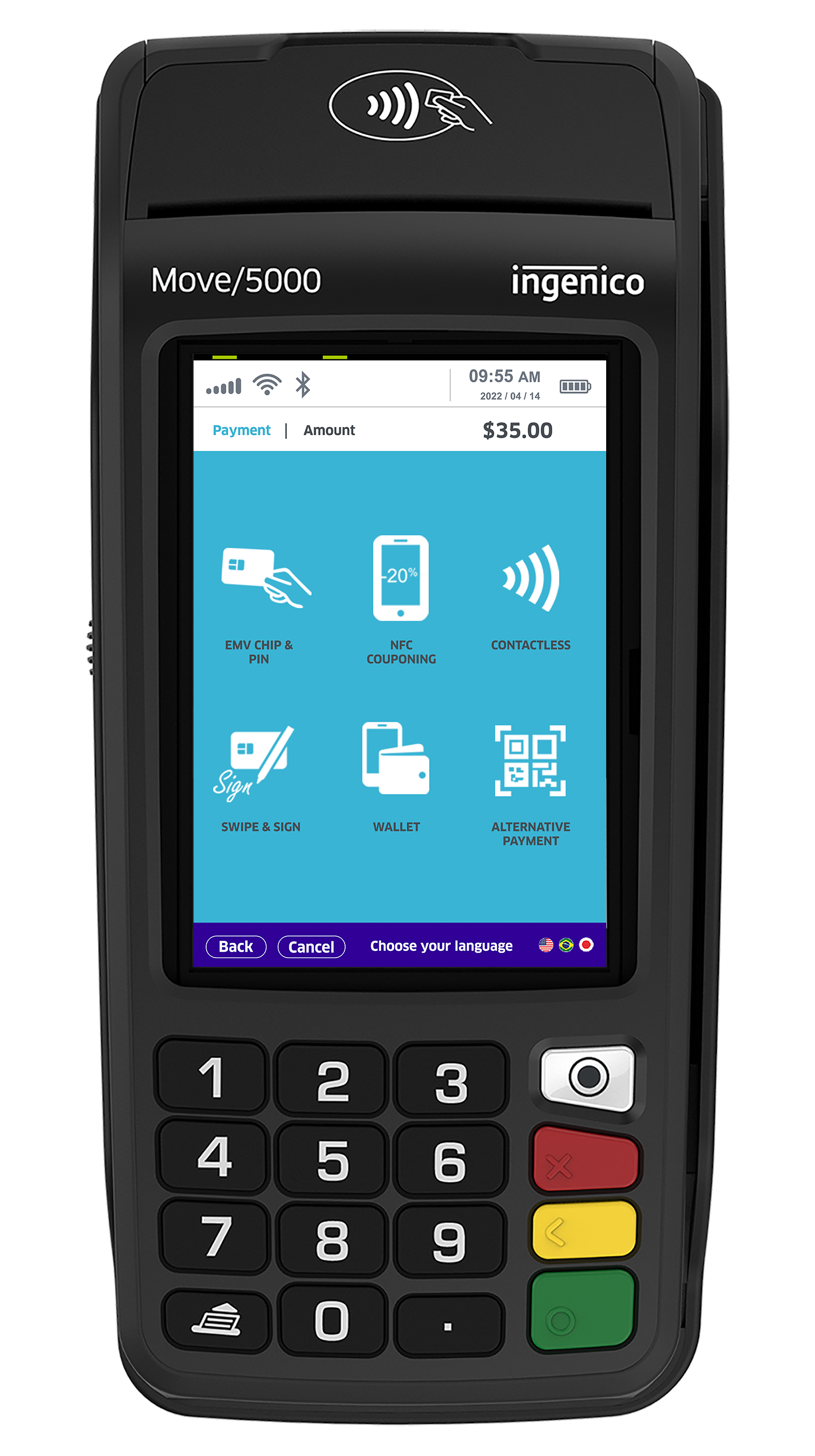

Ingenico Move 5000
The Move 5000 is part of Ingenico's Tetra device line. It is designed for both indoor and outdoor use.
Ingenico Move 5000 Terminal Hardware

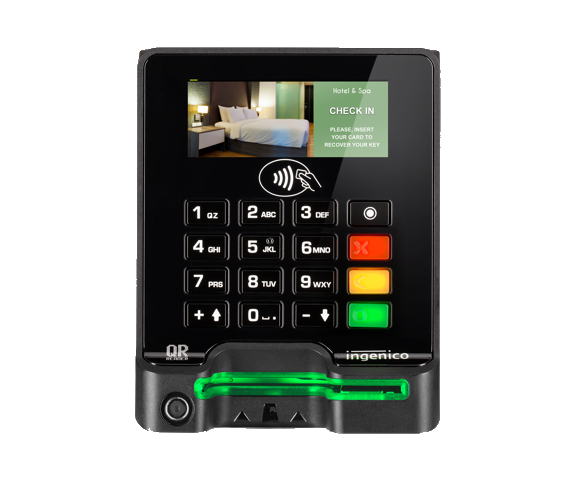

Ingenico Self 4000
Ingenico Self 4000 Terminal Hardware

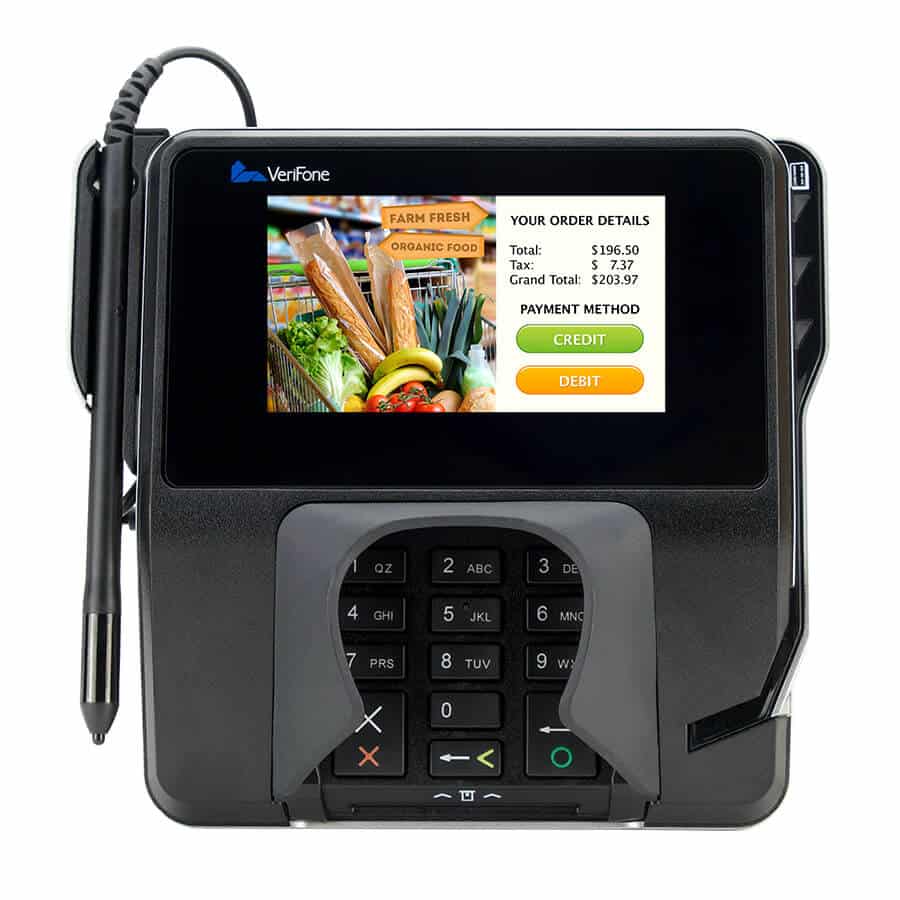

Verifone MX915
The Verifone MX series offers a color touch screen.
Warning: The Verifone MX series is no longer being manufactured and sold by Verifone. The device is still supported, however, Merchants are advised to consider newer options and recertification with the Developer Integrations team.
Verifone MX915 Terminal Hardware

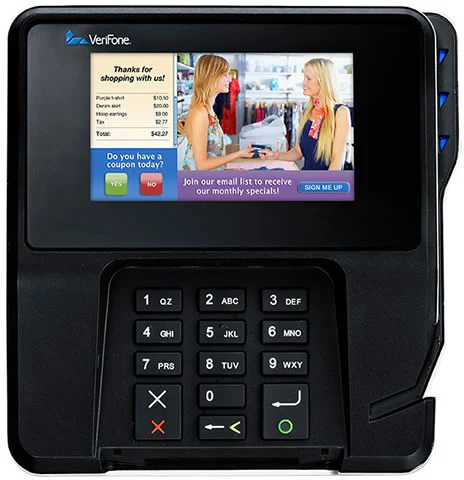

Verifone MX925
The Verifone MX series offers a color touch screen.
Warning: The Verifone MX series is no longer being manufactured and sold by Verifone. The device is still supported, however, Merchants are advised to consider newer options and recertification with the Developer Integrations team.
Verifone MX925 Terminal Hardware
